Sungrow SBR Series
Ideal Home Battery Storage System
As an authorized Sungrow SBR installer, we provide professional installation and integration of the latest SBR 064/096/128/160/192/224/256 models, ranging from 6.4 kWh to 25.6 kWh. High-performance, modular energy storage system that ensures long-term reliability through LFP technology, providing a scalable and adaptable solution for Australian homes.
Sungrow Battery 25.60kWh+ 10kWh Hybrid Inverter
Starting From $17,799*
Sungrow Battery Storage Packages
12.8kWh
Battery + 5kWh Inverter
- Ideal for small to medium homes & spaces
- Save up to 70% on your electricity bills
- Government rebates & incentives available
19.2kWh
Battery + 8kWh Inverter
- Perfect for medium to large homes
- Maximize solar use with up to 90% independence.
- Provides reliable backup power during outages
25.6kWh
Battery + 10kWh Inverter
- Best suited for large homes or high-energy users
- Provides reliable backup power during outages
- Future-proof solution with long-term savings.
Sungrow Battery Series
Designed for homes, businesses, and large‑scale solar farms

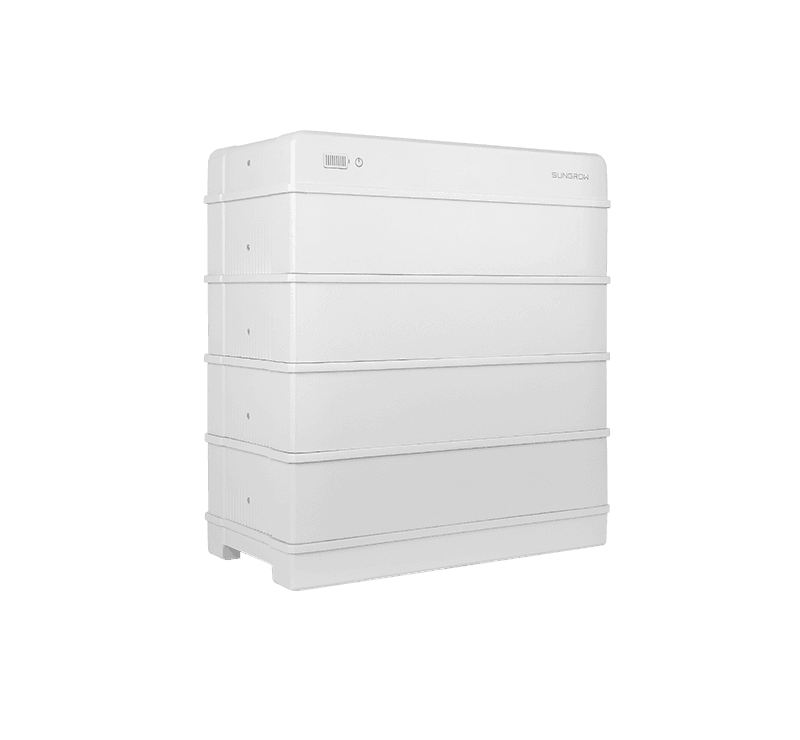

SBR 064/096/128/160/192/224/256 - Lithium Iron Phosphate (LFP)

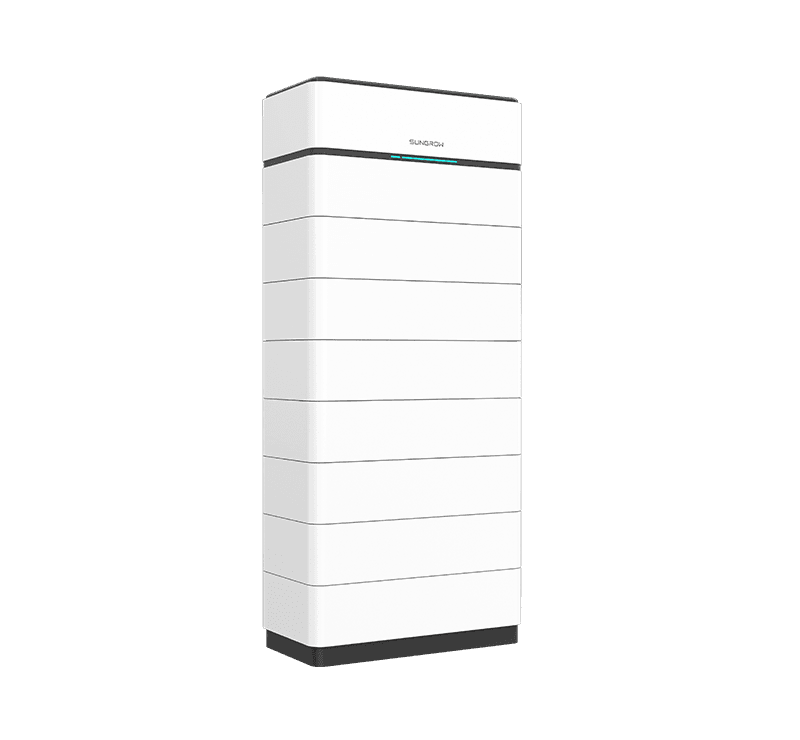

SBH 200-250-300-350-400 - LiFePO4 Battery
Sungrow SBR Series
The Sungrow SBR Series is a high-performance residential battery storage solution designed for Australian homes and solar systems, built on advanced lithium-iron-phosphate (LiFePO₄) chemistry. The SBR 064/096/128/160/192/224/256 models deliver reliable, safe, and efficient energy storage to maximise self-consumption, lower electricity bills, and improve energy independence. Its modular design allows flexible system sizing—from smaller household needs to larger solar setups—making the SBR Series ideal for new builds or solar upgrades.
Designed with smart battery management features and robust safety protections, the Sungrow SBR Series ensures long-lasting performance, high usable capacity, and seamless integration with Sungrow hybrid inverters. Whether you’re aiming to reduce peak grid usage, prepare for grid outages, or simply make more of your solar generation, the Sungrow SBR Series provides a scalable, cost-effective storage solution built for Australia’s demanding climate and energy landscape.
Specifications of SBR Series
The most advanced home battery with High Performance Moduler Storage System
Up to 25.6 kWh
Usable Energy Capacity
Up to 15.36 KWh
Peak Power Output
95%
Round-Trip Efficiency
10 Years
Comprehensive Warranty
Advanced Features of the SBR Series
Engineered for maximum performance and seamless integration
Modular & Scalable Design
The Sungrow SBR series offers a “Lego-style” flexibility, allowing Australian homeowners to customise their storage today and expand effortlessly tomorrow. With its cable-free, stackable design, you can increase your capacity in minutes without a complex system overhaul.
- Custom Capacity: Start with 6.4 kWh and scale up to 25.6 kWh per stack.
- Massive Expansion: Link up to 4 stacks in parallel for a total of 102.4 kWh—perfect for large estates or home businesses.
- Plug-and-Play: Modules simply stack on top of each other with no internal wiring required.
- Lightweight Flexibility: Each module is only 33kg, allowing for a quick, single-person installation.
- Life-Long Additions: Add more modules at any point during the battery’s lifespan as your energy needs grow.
Whole-Home Backup Power
The Sungrow SBR series ensures your home stays powered even when the grid fails. It provides a robust, automatic backup solution that keeps your essential appliances running without interruption.
- Instant Switch (<10ms): Transitions so quickly that computers and sensitive electronics stay on without rebooting.
- Whole-Home Support: Powers heavy loads like fridges and AC to maintain comfort during outages.
- Solar Black-Start: Can restart itself using solar power the next morning, even if the battery was fully drained at night.
- Continuous Charging: Unlike basic batteries, the SBR continues to charge from your solar panels during a blackout.
- Smart Reserves: Set a “Backup Reserve” via the iSolarCloud app to ensure you always have emergency power stored.
Professional Installation Process
As certified Sungrow installers, we ensure a seamless installation experience
Site Assessment
We evaluate your home’s energy needs and electrical system to design the optimal Battery storage setup.
System Design
Our engineers create a custom installation plan for your SBR Series and solar integration.
Professional Installation
Certified technicians install your SBR system with minimal disruption to your home.
Activation & Monitoring
We activate your system and set up the Sungrow iSolarCloud app for real-time monitoring and control.
Technical Overview (Sungrow SBR Series)
Sungrow SBR Series from 064 to 256 modular systems
All Models | SBR064 | SBR096 | SBR128 | SBR160 | SBR192 | SBR224 | SBR256 |
Modules | 2 Modules | 3 Modules | 4 Modules | 5 Modules | 6 Modules | 7 Modules | 8 Modules |
Energy (Usable) | 6.4 kWh | 9.6 kWh | 12.8 kWh | 16 kWh | 19.2 kWh | 22.4 kWh | 25.6 kWh |
Nominal Voltage | 128 V | 192 V | 256 V | 320 V | 384 V | 448 V | 512 V |
Rated DC Power | 3. 84 kW | 5.76 kW | 7.68 kW | 9.60 kW | 11.52 kW | 13.44 kW | 15.36 kW |
Max Current | 30 A (Cont.) | 30 A (Cont.) | 30 A (Cont.) | 30 A (Cont.) | 30 A (Cont.) | 30 A (Cont.) | 30 A (Cont.) |
Weight | 89 kg | 114 kg | 147 kg | 180 kg | 213 kg | 246 kg | 279 kg |
Height (mm) | 545 | 545 | 675 | 805 | 935 | 1065 | 1195 |
Energy & Performance
Specification | Details |
Usable Energy Capacity | 100% Up to 25.6kWh |
Peak Power | High surge capacity for startup loads |
Scalability | Multiple units can be stacked |
Battery Chemistry & Safety
Feature | Details |
Battery Chemistry | Lithium Iron Phosphate (LFP) |
Thermal Stability | High (enhanced fire safety) |
Battery Management | Advanced SOC for real-time status & Seamless Transition |
Degradation | Low over long-term use |
Smart Features
Feature | Details |
Mobile App | Sungrow iSolarCloud |
Energy Monitoring | Solar, battery, app, home & grid flow |
Backup Reserve | Adjustable via app |
Load Management | Intelligent backup prioritisation |
Backup & Usage
Feature | Details |
Backup Type | Whole-home backup |
Outage Response | Automatic & Seamless Transition |
Noise | Silent operation |
Fuel Required | No fuel |
Emissions | Zero emissions |
Installation & Build
Feature | Details |
|---|---|
Installation Type | Plug & Play straightforward |
Mounting Location | Indoor / Outdoor |
Weather Rating | Weather-resistant enclosure |
Electrical Phase | Residential single-phase (region dependent) |
Design & Warranty
Feature | Details |
Design Style | Minimalistic, premium stackable design |
Footprint | Compact, space-efficient |
Warranty | Up to 10 years (region dependent) |
Intended Lifespan | Long-term residential energy storage |
Best Suited For
Use Case |
Homes seeking energy independence |
Solar owners maximising self-consumption |
Areas with frequent power outages |
EV owners planning future expansion |
Want to compare with the Tesla Powerwall 3
Why choose Sungrow battery storage in Australia?
Sungrow is one of the world’s largest inverter and battery manufacturers, with dedicated Australian storage solutions and local support. The combination of modular capacity, proven safety, and strong performance makes the Sungrow SBR and SBH series a compelling choice for Australians wanting a reliable home battery.
Main reasons Australians pick a Sungrow battery:
- Flexible design: Suits new solar installs or retrofits with compatible hybrid inverters.
- Space-saving: Compact, stackable modules that fit neatly in a garage or utility area.
- Long warranties: Typical 10‑year product and performance warranties offered by many Australian suppliers (always check specific offer and terms).
Key benefits for Australian homeowners:
- Energy independence: Use more of your own solar instead of buying power from the grid.
- Bill savings: Shift usage away from expensive peak periods and protect against rising tariffs.
- Backup power: Keep essential loads running during grid outages with the right system design.
- Future-ready: Modular design makes it easy to start small and expand storage later.
Benefits Of Using Sungrow Battery in Australia
Using a Sungrow battery in Australia offers a smart and reliable energy storage solution for homes and businesses looking to maximise their solar investment. Designed to perform efficiently in Australia’s diverse climate, Sungrow solar batteries provide high energy efficiency, long lifespan, and seamless integration with solar PV systems. With advanced lithium-ion technology, Sungrow batteries help reduce electricity bills, increase energy independence, and provide backup power during grid outages. Their compliance with Australian standards, strong local support network, and competitive pricing make Sungrow battery storage systems in Australia a cost-effective and trusted choice for sustainable, renewable energy solutions.
Conclusion
In conclusion, choosing a Sungrow battery in Australia is a future-ready decision for homeowners and businesses seeking reliable, efficient, and affordable energy storage. With advanced safety features, high performance, and compatibility with modern solar systems, Sungrow batteries help maximise solar self-consumption while reducing reliance on the grid. Backed by strong local support and proven global expertise, Sungrow solar battery storage stands out as a dependable solution for achieving long-term energy savings and greater energy independence in Australia.
